Charged EVs | imc Test & Measurement launches high-isolation temperature module targeting EV battery testing up to 1400 V

imc Test & Measurement, part of Axiometrix Solutions, has announced the launch of the imc CANSASflex HISO-T-8-2L, a high-isolation CAN-Bus-based temperature measurement module designed for high-voltage environments. The company says that the device specifically addresses advanced requirements in EV battery development, research and testing, particularly as battery system voltages rise beyond 800 V.

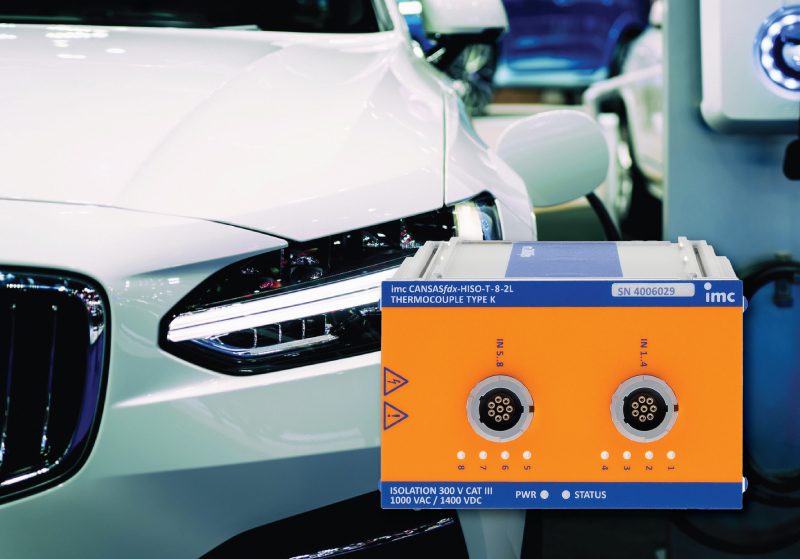

The HISO-T-8-2L module features eight thermocouple channels accessible via LEMO.2P Redel connectors, supporting four Type K thermocouples per connector. The module is rated for high-voltage safety isolation up to 1400 V DC, and is tested up to 8 kV peak and 4.4 kV root mean square (rms) voltages.

The company says the module delivers high measurement accuracy for precise battery temperature monitoring, a critical parameter in EV battery system performance and safety. The HISO-T-8-2L integrates into the existing CANSASflex (CANFX) data acquisition platform and supports cable-free installation with a click-in design. It is also rack-ready for use in standard 19-inch test stand systems.

The HISO-T-8-2L replaces a previous-generation CANSASflex module and is intended for applications such as testing DC power links, high-voltage batteries, and complete electric drive systems.

Source: imc Test & Measurement
